ribbon Blender

Blend with Precision. Mix with confidence.

Ribbon Blenders

In the competitive landscape of 2026 manufacturing, achieving a perfectly homogeneous mix is critical. The Ribbon Blender by Jas Enterprise is a premier solution engineered for the high-precision blending of powders, granules, and semi-solids. Recognized as a top-tier industrial ribbon blender, this machine is the backbone of production lines in the food, pharmaceutical, and chemical sectors worldwide.
Whether you are looking for a reliable powder mixing machine for spices or a heavy-duty system for chemical resins, our technology ensures that every batch meets the highest standards of uniformity. The secret to the superior performance of our ribbon mixer lies in its sophisticated agitation system. At the core of the machine is a double helical ribbon blender agitator. This design features an inner and outer ribbon that moves material in opposite directions.
Outer Ribbons: Move the material from the ends of the trough toward the center.
Inner Ribbons: Push the material from the center toward the ends of the vessel.
This counter-current flow creates a “tumbling” effect that ensures even the smallest trace ingredients are distributed evenly throughout the entire batch. As a horizontal ribbon blender, this setup minimizes “dead spots,” ensuring that no material is left unmixed at the corners of the trough.

Stainless steel ribbon blender featuring a top-mounted digital control panel with multiple operation switches and emergency stop. — Fully integrated control system for automated mixing cycles and enhanced operator safety.

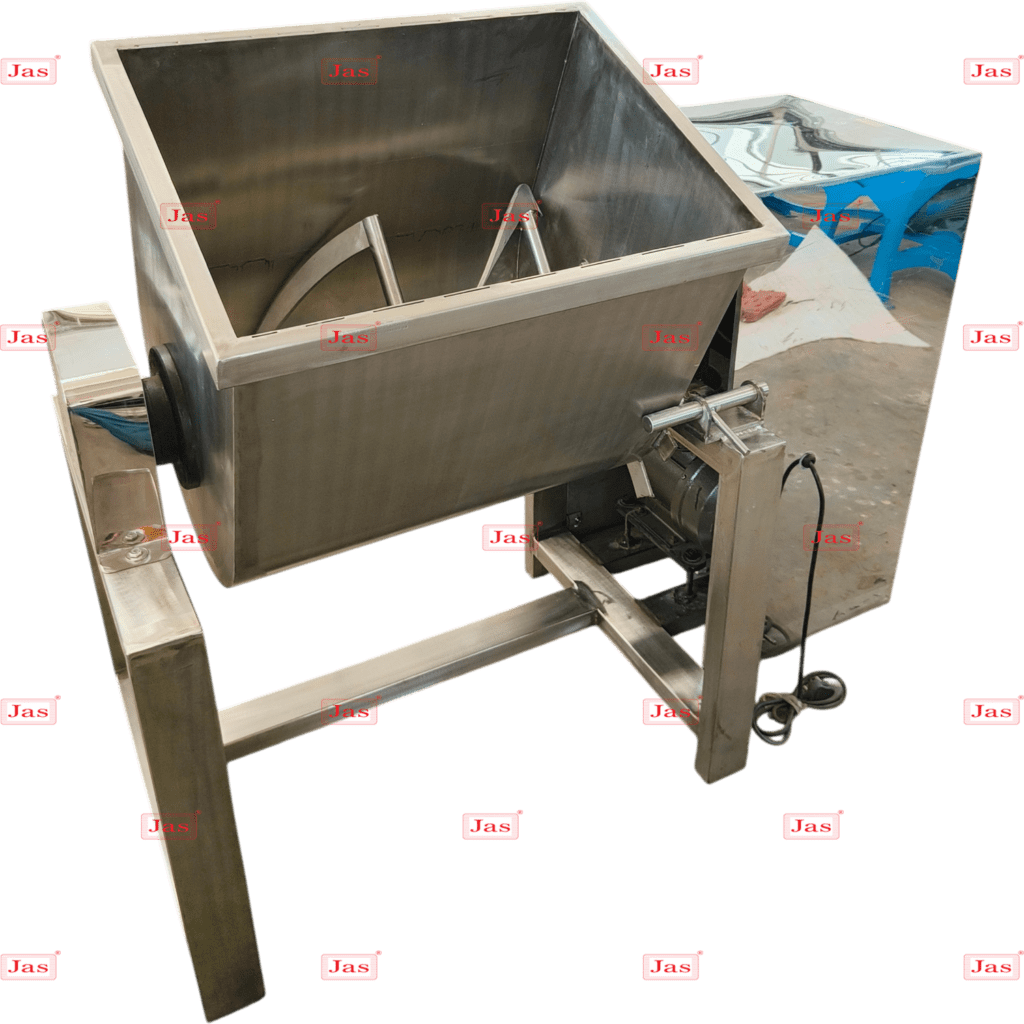

Industrial tilting stainless steel ribbon blender machine with U-shaped mixing trough and internal helical agitator for powder mixing. — A high-efficiency tilting ribbon blender designed for uniform mixing and easy discharge of dry powders and granules.

Key Features of Ribbon Blender

Double Helical Ribbon Design—Ensures thorough and uniform mixing across the entire batch
Horizontal Trough Construction—Promotes efficient blending and easy discharge
Customizable Capacity—Available in sizes ranging from 50 liters to 5000 liters
Food-Grade Stainless Steel (SS304/SS316)—Hygienic, corrosion-resistant, and easy to clean
Dust-Tight Sealing—Prevents contamination and maintains product integrity
Optional Jacketed Design – Supports heating or cooling during mixing
Low Maintenance—Simple mechanical design with minimal wear parts

Available models of Ribbon Blenders

Model No.	Chamber Size (L×W×H	Volume (Litres)	Spices Capacity	Motor HP
JAS-RB-50	18″ × 12″ × 15″	50	10 kg	1 HP (0.75 kW)
JAS-RB-100	21″ × 15″ × 18″	80	25 kg	2 HP (1.5 kW)
JAS-RB-250	24″ × 18″ × 24″	150	50 kg	3 HP (2.5 kW)
JAS-RB-500	36″ × 18″ × 24″	250	100 kg	5 HP (3.7 kW)
JAS-RB-1000	48″ × 24″ × 30″	500	200 kg	7.5 HP (5.5 kW)
JAS-RB-1500	60″ × 30″ × 36″	1000	500 kg	10 HP (7.5 kW)
JAS-RB-2000	84″ × 30″ × 36″	1250	750 kg	12.5 HP (9.3 kW)
JAS-RB-3000	120″ × 30″ × 36″	2000	1000 kg	15 HP (11 kW)

Applications of Ribbon Blenders

Food Industry: Spice blends, flour mixes, baking ingredients, protein powders
Pharmaceuticals: Tablet granules, dry powders, nutraceuticals
Chemicals: Detergents, pigments, fertilizers, polymers
Cosmetics: Talcum powder, face packs, herbal blends
Plastics & Polymers: Masterbatch and additive mixing

Working Principle of Ribbon Blenders

Feeding: Raw materials are loaded into the horizontal trough manually or via conveyor.
Mixing: The inner and outer ribbons rotate in opposite directions, lifting and folding the material to achieve uniform blending.
Discharge: Once mixing is complete, the product is discharged through a bottom outlet with minimal residue.
Control: Operators can adjust mixing time and speed based on material type and batch size.

Frequently Asked Questions Ribbon Blender s

Q1: What materials can be mixed in a ribbon blender? It’s suitable for powders, granules, pastes, and semi-solid materials across food, pharma, chemical, and cosmetic industries.

Q2: What is the typical mixing time? Mixing time ranges from 5 to 15 minutes, depending on material properties and batch size.

Q3: Can it handle heat-sensitive materials? Yes, optional jacketed models allow for temperature control during mixing.

Q4: Is it easy to clean? Absolutely. The open trough design and stainless steel construction make cleaning quick and hygienic.

Q5: What capacities are available? Models range from 50 liters to 5000 liters, with custom options available for specific production needs.
